Torno CNCNAKAMURA-TOME
WT 300
Torno CNC
NAKAMURA-TOME
WT 300
viti i prodhimit
2006
Gjendje
I përdorur
Vendndodhje
Ennepetal

Fotot tregojnë
Shfaq hartën
Të dhëna për makinën
- Përshkrimi i makinës:
- Torno CNC
- prodhues:
- NAKAMURA-TOME
- Model:
- WT 300
- viti i prodhimit:
- 2006
- Gjendje:
- i përdorur
Çmimi & Vendndodhja
- Vendndodhja e shitësit:
- Scharpenberger Str. 96-98, 58256 Ennepetal, Gjermania
Telefononi
Detajet e ofertës
- ID e shpalljes:
- A20345500
- Numri i referencës:
- 1041-203460
- përditësim:
- së fundmi më 21.10.2025
Përshkrim
turning diameter over bed 0310 mm
turning length 780 mm
control 18 i Fanuc
turning diameter over bed slide 270 mm
centre distance 850 mm
spindle turning speed - stepless 45- 4500 U/min- rpm
spindle bore 80 mm
feeds 0-4800 mm/min
rapid power traverse in X-and Z direction 16/24 m/min
voltage 400 V
connected load 71,9 KVA
face slide travel 195 mm
Ksdpfx Agsxp Ry Rstenc
longitudinal travel 780 mm
dimensions of the machine ca. 4,84 x 2,52 x 2,27 m
toolpiece turning speed range 0- 3600 U/min
work piece power 5,5/3,7 kW
main drive motor 11/15 kW
weight of the machine ca. 12 t
y-axis 120 (+/- 60) mm
c-axis 360 x 0,001 °
Has two 12 position turret heads with live tooling (C- axe), one with Y axe,

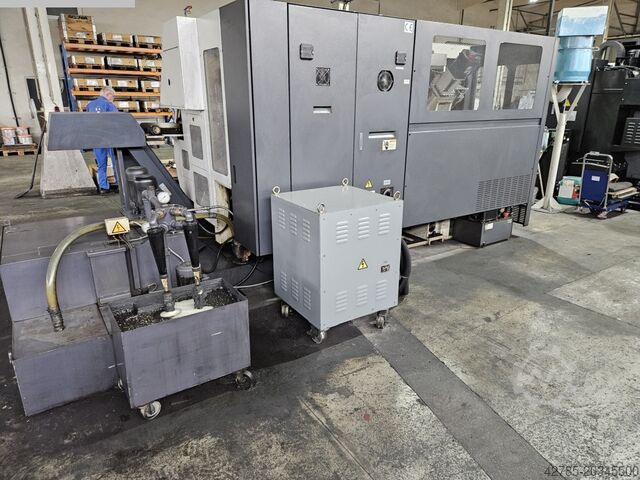

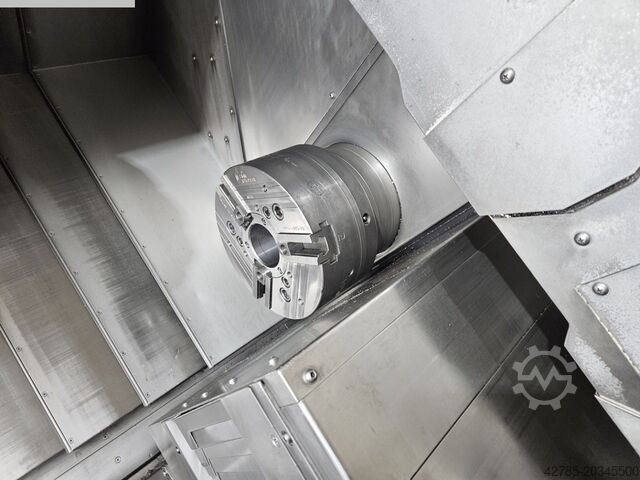

sub spindle, power chuck, cooling arrangement and chip conveyor.

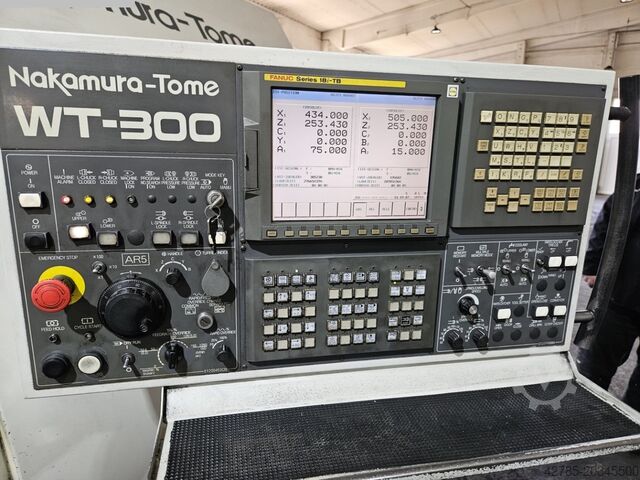

Control: Fanuc 18 i. With many accessories.
turning length 780 mm
control 18 i Fanuc
turning diameter over bed slide 270 mm
centre distance 850 mm
spindle turning speed - stepless 45- 4500 U/min- rpm
spindle bore 80 mm
feeds 0-4800 mm/min
rapid power traverse in X-and Z direction 16/24 m/min
voltage 400 V
connected load 71,9 KVA
face slide travel 195 mm
Ksdpfx Agsxp Ry Rstenc
longitudinal travel 780 mm
dimensions of the machine ca. 4,84 x 2,52 x 2,27 m
toolpiece turning speed range 0- 3600 U/min
work piece power 5,5/3,7 kW
main drive motor 11/15 kW
weight of the machine ca. 12 t
y-axis 120 (+/- 60) mm
c-axis 360 x 0,001 °
Has two 12 position turret heads with live tooling (C- axe), one with Y axe,
sub spindle, power chuck, cooling arrangement and chip conveyor.
Control: Fanuc 18 i. With many accessories.
