Gildemeister MF twin 65

Gildemeister MF twin 65

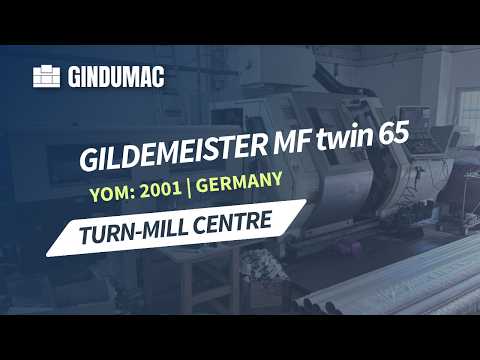

This 3-axis Gildemeister MF twin 65 turn-mill centre was manufactured in 2001. It features a swing diameter of 240 mm and a normal turning diameter of 200 mm. The machine offers a spindle distance of 800 mm and a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the Gildemeister MF twin 65 turn-mill centre we have for sale. Contact us for further details.

TECHNICAL SPECS:- Bed Design: 45° slant bed, roller guide ways- Swing Diameter: 240 mm- Normal Turning Diameter: 200 mm- Spindle Distance: 800 mm- Slide 1 X/Z Travel (Cross/Longitudinal): 190 / 555 mm- Slide 2 X/Z Travel (Cross/Longitudinal): 190 / 555 mm- Slide 1 Y-Axis Travel : 40 mm- Spindle 2 Longitudinal Travel: 600 mm- Main Spindle 1 (Left): - Chuck Diameter: 200 mm - Max Bar Capacity: 65 mm - Spindle Head Flat Flange: 170 h5 - Spindle Bore: 79 mm - Draw Tube Inner Diameter: 66 mm - Front Bearing Diameter: 120 mm - Drive Power (40/100% ED): 28 / 21 kW - Speed Range: 25 - 5000 rpm (min⁻¹) - Knee Speed: 850 rpm (min⁻¹) - Max Torque (40/100% ED): 320 / 240 Nm - Drive Type: AC / 1 (ISM) - C-Axis Rapid Traverse: 250 rpm (min⁻¹) - C-Axis Holding Torque: 200 Nm - C-Axis Indexing Accuracy: 0.025°- Counter Spindle / Main Spindle 2 (Right): - Chuck Diameter: 200 mm - Max Bar Capacity: 42 mm - Spindle Head Flat Flange: 140 h5 - Spindle Bore: 56 mm - Draw Tube Inner Diameter: 44 mm - Front Bearing Diameter: 90 mm - Drive Power (40/100% ED): 18 / 14 kW - Speed Range: 31 - 6300 rpm (min⁻¹) - Knee Speed: 1000 rpm (min⁻¹) - Max Torque (40/100% ED): 130 / 173 Nm - Drive Type: AC / 1 (ISM) - C-Axis Rapid Traverse: 250 rpm (min⁻¹) - C-Axis Holding Torque: 120 Nm - C-Axis Indexing Accuracy: 0.025°- Slide 1 (Upper): - Rapid Traverse X/Z: 20 / 30 m/min (without Y-axis) or 20 / 7.5 / 30 m/min (X/Y/Z with Y-axis) - Feed Force X/Z: 4 / 7 kN - Path Resolution: 0.001 mm - Ball Screw Pitch x Diameter: 12x28 / 15x32 mm (without Y) or 12x28 / 5x32 / 15x32 mm (with Y)- Slide 2 (Lower): - Rapid Traverse X/Z: 20 / 30 m/min - Feed Force X/Z: 4 / 7 daN (kN) - Path Resolution: 0.001 mm - Ball Screw Pitch x Diameter: 12x28 / 15x32 mm- Slide 3 (Spindle 2 Z-Movement): - Rapid Traverse A: 30 m/min - Feed Force A: 7 kN - Path Resolution A: 0.001 mm - Ball Screw Pitch x Diameter: 15x32 mm- Tool Turrets (Upper and Lower): - Number of Tool Stations: 2 x 12 - Tool Shank Diameter (DIN 69880 / VDI): 30 mm - Driven Tool Stations: 2 x 12 - Driven Tool Power (40/100% ED): 5 kW - Driven Tool Max Torque (40/100% ED): 16 Nm - Driven Tool Speed Range: 40 - 4000 rpm (min⁻¹)- Electrical Data: - Voltage: 400 V (3-phase, 50 Hz) - Connected Load: 65 kVA - Rated Current: 95 A - Back-up Fuse: 100 A - Auxiliary Voltages: 230 V / 24 V=- Hydraulics System: - Tank Capacity: approx. 25 L - Pump Power: 2.2 kW - Max System Pressure: 80 bar - Clamping Device Pressure: 80 bar- Coolant System & Filtration: - Tank Capacity: 200 L - Pump Power: 1.65 kW - Delivery Volume at 6 bar: 50 L/min - Equipped with band/paper filtration unit- Machine Dimensions & Weight: - Total Length (with Chip Conveyor): 4770 mm - Total Depth (with Electrical Cabinet): 2220 mm - Total Height (with Electrical Cabinet): 1950 mm

Prsdpfx Ais Agvbqs Doc
Technical Specification
Counter Spindle Yes
Driven Tools Yes
