Millutensil MIL163/056 150T Tuschierpresse

For sale is a used Millutensil MIL 163 hydraulic spotting press, year of manufacture 2004, with a pressing force of 150 tons. This 4-column press features a table size of 1,300 × 1,600 mm, a max installation height of 1,300 mm, and a column spacing of 1,700 × 1,370 mm, making it particularly suitable for spotting, try-out, and adjustment work in tool and mold making.

#####
Technical Data & Information:
Spotting Press – Millutensil MIL 163 – 150 T

#### General Information
- Manufacturer: Millutensil
- Model: MIL 163
- Year of manufacture: 2004
- Design: 4-column spotting press
- Pressing force: 150 T (adjustable)
- Column spacing: 1,700 × 1,370 mm
- Table size: 1,300 × 1,600 mm
- Max installation height: 1,300 mm
- Table height from floor: 610 mm
- Overall dimensions (W×D×H): approx. 2,000 × 2,550 × 4,600 mm
- Total weight: approx. 19,000 kg
- T-slots: DIN 650 / 22

#### Tool Loading Capacity
- Max. ram load: 10,000 kg
- Max. table load: 16,000 kg

Fjdsytttpjpfx Acyofw
#### Ram

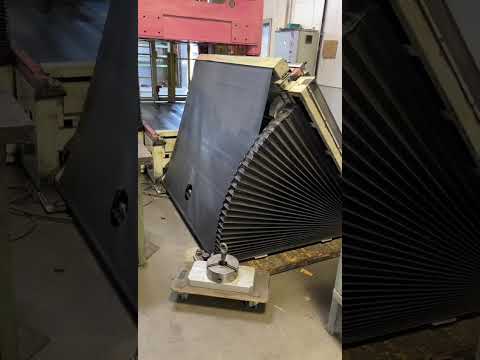

- Swivel range: 100° / 150° / 180°
- Max. breakout force: 30 T

#### Hydraulic Cylinders
- Cylinder diameter: Ø 440 mm
- Piston rod: Ø 300 mm
- Extension: 300 mm
- Return speed: 35–50 mm/s
- Idle speed: 65–85 mm/s
- Pressing speed: 8 mm/s

#### Hydraulic Power Unit
- Motor power: 18.5 kW

#### Electrical Connection
- Main supply: 400 V AC
- Control voltage: 24 V DC
- Frequency: 50 Hz
- Total connected load: approx. 18.5 kW

#### Control System
- Operator panel control
- Siemens SIMATIC OP7 operator panel
- Lockable mode selector switch

#### Safety
- CE compliant (year of manufacture 2004)
