Geibel & Hotz FS 60 Compact

Geibel & Hotz FS 60 Compact

Surface Grinding Machine Geibel & Hotz FS 60 Compact, Year of Manufacture 1999, Excellent CONDITION

The machine comes from the technical center of a renowned German mechanical engineering company.

Technical Data:

Surface Grinding Machine GEIBEL & HOTZ Type FS 60 AC
Year of manufacture: 1999
Electromagnetic chuck: 600 x 400 mm
Table clamping area: 960/620 x 400 mm
Hodpfx Ajx H Nn Dsabsfr
Max. longitudinal table movement: 660 mm
Grinding width: 400 mm
Max. cross movement with cross feed: 400 mm
Max. cross movement with manual adjustment: 425 mm
Max. distance spindle center to magnet plate: 425 mm
Table speed: 2 - 28 m/min, infinitely variable
Grinding wheel dimensions: Ø 300 x 50 x 76 mm
Manual vertical feed: 1 graduation = 0.002 mm
Manual cross feed: 1 graduation = 0.01 mm
Power supply: 400 Volt, 50 Hz
- Electromagnetic chuck GEIBEL & HOTZ, Type HPM 600 x 400, installation height 99 mm
- Automatic depth feed for surface and plunge grinding with actual value digital display
- Setting of depth increment via decade switch
- Cross feed for surface grinding driven by motor or manually via handwheel
- Hydraulic longitudinal table movement
- Central lubrication for longitudinal table movement, Y+Z axis movements and lead screws
- Mounted grinding wheel Ø 300 mm (actual Ø 290 mm)
- Electrical control cabinet adjacent
- Hydraulic unit integrated in machine base
- Coolant device with paper band filter
Required space (L x W x H): 2850 x 2250 x 2500 mm
Weight approx. 2 tons (complete)
Very good condition


About the machine:

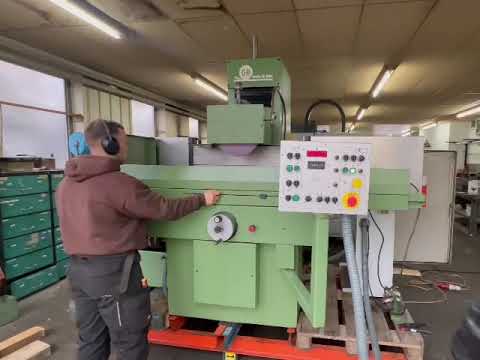

Offered here is a Geibel & Hotz FS 60 Compact surface grinding machine. This universal surface grinder is in very good original condition. It comes from a facility where it was only occasionally used in the technical center for sample grinding. Very user-friendly controls. A grinding travel of 600 mm in the longitudinal axis and a cross travel of 400 mm makes it ideal for toolmaking, jig manufacture, and small-batch production. The comprehensive standard equipment and user-friendly handling distinguish this machine series. The robust spindle head design and dual V-guideway construction for the longitudinal and cross axes guarantee lasting precision. The intuitive operation of the controls simplifies use and significantly increases productivity. The guideways are lubricated regularly through the central lubrication system. The Geibel & Hotz was mechanically and electrically inspected by us. Take advantage of the opportunity to inspect and test the Geibel & Hotz under power on our premises.

Further surface grinding machines from renowned manufacturers can be found on our website.
