MAKINË BLUARJE RREKULLORE CNC
STUDER S 41

Name: STUDER S 41
Brand: STUDER
Availability: InStock

Gjendje

I përdorur

Vendndodhje

Brügg

MAKINË BLUARJE RREKULLORE CNC STUDER S 41

Të dhëna për makinën

Përshkrimi i makinës:: MAKINË BLUARJE RREKULLORE CNC

Prodhues:: STUDER

Model:: S 41

Gjendje:: i përdorur

Çmimi & Vendndodhja

Vendndodhja e shitësit:: Industriestrasse 22, 2555 Brügg, Zvicra

Telefononi

Detajet e ofertës

ID e shpalljes:: A22604622

Numri i referencës:: 023247

Përditësim:: së fundmi më 24.08.2026

Përshkrim

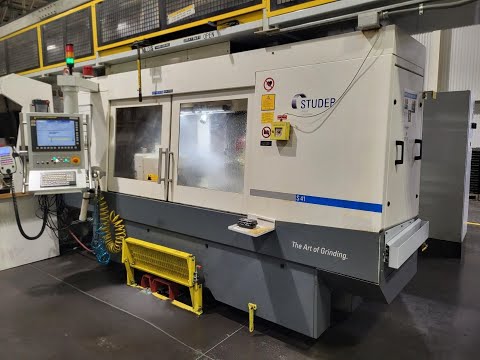

STUDER S41 is a CNC cylindrical grinder engineered for precision, high accuracy and reliability. Capacities: centre height 275 mm, distance between centres 1000 mm, max workpiece Ø 550 mm, workpiece height 1000 mm, Z 1150 mm, X 350 mm, workpiece weight 250 kg. Specs: grinding wheel Ø500×100 mm, peripheral speed 50/80 m/s, spindle speeds 0–4500 rpm, wheel head swivel -45/+225°, workpiece spindle motor 15 kW, 3x400 V 50 Hz, air 5 bar, tailstock stroke 60 mm (Ø 60 mm), machine weight ≈9000 kg. Accessories: high‑res C‑axis, B1+B2 axes, coolant system, internal grinding attachment, 2 spindles, lamp, status light, PC system, electronic handheld control, foot pedal. Achieves tight tolerances; typical in automotive, aerospace, toolmaking, medical and watchmaking.
