WEINIG Hydromat 1000

No. 3176

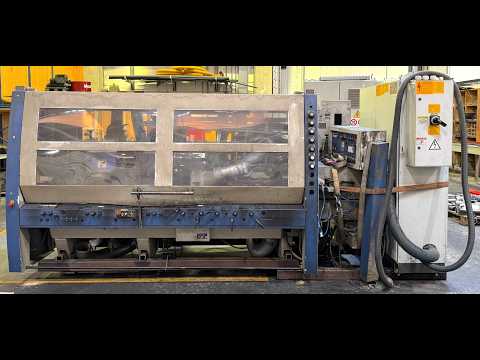

Automatic planer and moulder WEINIG Hydromat 1000

Used, year of construction 2007, machine already dismantled

6 spindles: bottom-right-left-top-top-bottom
Electronic feed 6 - 60 m/min
Working width 80 - 150 mm
Working height 23 - 65 mm
Finished slat widths 4 - 15 mm
Max. number of slats 16 pieces
Slat lengths 400 - 4000 mm

1st spindle horizontal at the bottom
Brake motor 11 kW, 6000 rpm
Spindle diameter 45 mm
Tool flight circle 125 - 180 mm

2nd spindle vertical right
Brake motor 7.5 kW, 6000 rpm
Diameter 45 mm
Tool flight circle 112 - 250 mm
Max. Moulding depth 35 mm
Axial adjustment travel 80 mm

3. spindle vertical left
7.5 kW, 6000 rpm
Diameter 45 mm
Tool flight circle 112 - 250 mm
Max. Moulding depth 35 mm
Axial adjustment travel 80 mm
Pressure shoe in front of the spindle, swiveling away, pneumatic roller contact pressure

4. spindle horizontal top
15 kW, 6000 rpm, diameter 45 mm
Tool flight circle 112 - 250 mm
Max. Moulding depth 35 mm
Axial adjustment path 45 mm
Split pressure shoe in front of upper spindle, adjustable and swiveling away, pneumatic

5. horizontal top spindle as saw spindle
Brake motor 37 kW, 5000 rpm
Diameter 45 mm
Axial adjustment travel reduced to 25 mm
Tool flight circle 112 - 250 mm
Max. Sawing depth 35 mm
Axial adjustment path 45 mm
Split pressure shoe in front of upper spindle, adjustable and swiveling away, pneumatic

6. horizontal spindle at the bottom as saw spindle
Brake motor 30 kW, 5000 rpm
Axial adjustment travel reduced to 25 mm
Diameter 45 mm
Tool flight circle 112 - 250 mm
Max. Sawing depth 35 mm
Axial adjustment path 45 mm

All moulder spindles with high-performance bearings
Electronic feed 7.5 kW
Psdpfju Agh Ssx Agmjpw
Adjustment travel of the feed rollers compared to the left-hand spindle, axial 35 mm
Shorter roller distance compared to the right-hand spindles
Running meter counter, electric, with 2 counters

Short infeed table (1.2 m) with 2 driven rollers above the table
1 driven, toothed roller in the table, lateral pressure roller
Automatic waxilite pump / lubricant pump
Machine with 4-roller extension, pendulum shafts extended to 200 mm
2 driven, toothed rollers in the outfeed table
2 driven, toothed rollers in the machine table

Pressure beam before and after upper spindle with mechanical digital display
DigiSet (digital double display) for left and top spindles
Electrical height adjustment of the upper spindles and the feed

Sale on behalf of customer, ex location near 39100 Bolzano (Italy), without dismantling, without transport and assembly
Dismantling, loading, and transport by us optionally available

Subject to errors in the description and price

To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Photos and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or shipping

Terms of delivery: Ex location
