Qendër përpunimi portali

IMA Klessmann Bima P480V 180/480

Exceptional machine and exceptional quality output.

Machine was serviced by IMA technicians and original spare parts where used.
Optic fiber and most of the compressed air pipes have been replaced with new ones.

The automatic positioning of the vacuum cups is speeding the setup time.
ImaWoop version 6.0 with Quicktool is making the operator life easier.

You are always welcome to see the machine working.

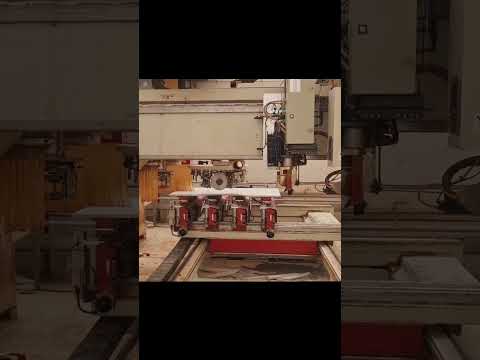

Anytime, a live visualisation of the machine through video link is available.

CNC-portal processing centre

make: IMA
type: BIMA P 480 V, 180/480
Year of production: 2001

Short description

Machine able to do a lot of complex tasks (milling, drilling, cutting, edgebanding, various angle cutting)

- alternate processing
- X = 2 x 2.400, Y = 1.800 mm
- main spindle 12 kW
- 18-fold tool changer
- gluing unit with 6-fold coil-magazine

Description
working area
with standard units Y = 1.800 mm

changing table area with alternate processing:
X = 2 x 2.400 mm /milling- and boring processing
X = 2 x 2.100 mm /gluing processing
Iasdpfx Ahott Rpweysr

CNC-line control IMATRONIC NT 231
Software Imawoop 6.0

automatic positioning of the vacuum cups
Automatic lubrication
Conveyor for waste and chips (belt)

main spindle 12 kW
with integrated C-axis 360 degrees
autom. tool / adapter units changer 18-fold

1 edge gluing unit VT100
with glue application device
edge thickness: 0,4 – 3 mm
for 4-sided edgebanding and all around edgebanding with butt joint
6-fold coil magazine

1 end-trimming unit 0,8 kW

adapter units included
- saw, 90 degrees fixed
- horizontal drilling unit with 4 ways
- ABS edge milling unit
- ABS edge radius scraper and horizontal scraper unit
other adapters and tools available for extra cost


Chip removal transport belt
Air conditioned included in the electric cabinet
