Qendër vertikale për përpunimin e drurit

HOLZ-HER EVOLUTION 7402 4mat

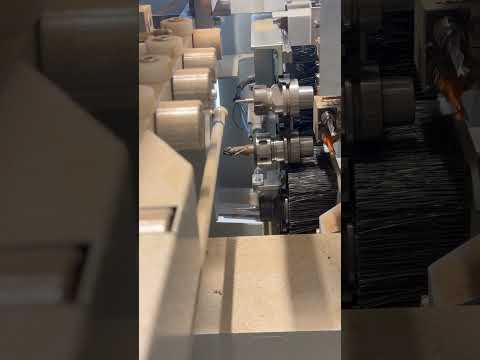

HOLZ-HER EVOLUTION 7402 4MAT – Vertical CNC Machining Center

Year of manufacture: 2023
Operating hours: 207 h
Availability: Immediately

High-performance industrial vertical CNC machining center suitable for milling furniture carcasses and other components from wood and laminated panels.

Key Features
- Vertical machining with highly accurate vacuum positioning system (including complimentary vacuum pads)
- Rear clamping for processing all edges of the workpiece, enabling complete machining without repositioning
- Laser length measurement system
- Air-conditioned control cabinet
- Uninterruptible power supply for computer unit

Technical Specifications
- Working length: 200–3200 mm
- Working height (Y): 70–920 mm
- Panel thickness: 8–70 mm
- Maximum speed:
- Vector: 68 m/min
- Per axis: X 25 – Y 60 – Z 20 m/min

Machining Unit
- 10.3 kW electrospindle (air-cooled)
- HSK-F63 tool holder
- 4-position tool magazine
- XL boring unit – 19 drilling spindles (13 vertical, 6 horizontal)
Dedpfx Acjy Eygnjtowa
- Groove saw in Y-direction

Software and Control
- Complete CAMPUS V7 EVOLUTION CAD/CAM software
- Included modules: NC-HOPS, aCADemy, MT-Manager, Workcenter, Scenes
- Integrated 3D simulation
- Intuitive programming and advanced machining management
- Remote control console
- USB port
- Wifi

Equipment
- ECO vacuum system (8 m³/h)

Njoftimi është përkthyer automatikisht. Mund të ketë gabime në përkthim.
