Makinë për tallash druri

AVB MACHINERY LLC AVB-48

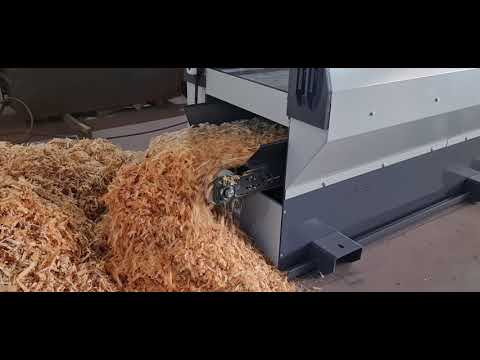

AVB-48 Wood Shaving Machine

Heavy-Duty Performance. Industrial Reliability.

The AVB-48 is one of our most popular heavy-duty wood shaving machines, engineered for high industrial capacity and consistent performance. Designed to process both round logs and offcuts with minimal material size requirements, this model is ideal for log shaving as well as wood waste processing.

Built with a robust, long-lasting body structure, the AVB-48 ensures durability even under intensive use. It comes equipped with T.C.T. carbide blades for superior cutting precision and extended service life. Also, we can be equipped with straight blades for horse shavings production as well.

For enhanced versatility, the machine can be fitted with an optional hopper pressing system—perfect for handling small pieces and offcuts efficiently.

Rsdpfxexwizpe Ab Iobw
The AVB-48 supports both planer blade and carbide blade working principles, offering flexibility to match your production needs.

TECHNICAL DETAILS;
TECHNICAL SPECIFICATIONS AVB-48 or AVB-48HELIX

Number of Cutterheads 4
Length of Cutter Head 60 cm
Number of Blades 190 T.C.T. blades/cutter head or 7 straight blades
Power Supply 4 *11 KW = 44 KW (59 HP)
Hopper Working Hydraulic
Hopper Dimensions 1500*600*900 mm
Working Voltage 380 V 50-60 Hz
Conveyor Band Motor 0,75 KW
Hydraulic Motor 7,5 KW
Total Power 52,25 KW
Cutterhead Speed 3000 rpm
Cutterhead Diameter 160 mm
Shaving Depth 0,2 mm - 1,2 mm
Max.Log Input Length 75-150 cm
Max.Log Input Width 10 - 45 cm
Working Distance 1200 mm
Machine Dimensions L4300 x H1700x W1600 mm
Weight 3.500 kg
Production Capacity 1000-1200 kg/h
