Vollmer CHP250

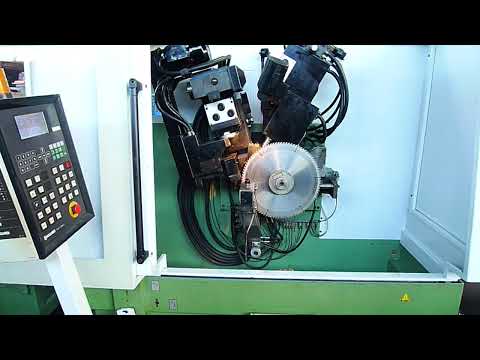

CHP250 is an automatic machine for grinding the complete tooth geometry of carbide-tipped circular saw blades.

Version with two CNC axes and a full enclosure.

Technical specifications:
Circular saws
Outer diameter: 80 to 810 mm
Bore diameter: 10 to 220 mm
Blade thickness: up to 8 mm
Tooth pitch: 6 to 120 mm
Rake angle: -30° to +50°
Clearance angle: 5° to 45°
Tooth height difference: up to 3 mm
Back rake bevel: up to 45°
Face bevel: up to 15°
Grinding path: up to 20 mm
Grinding wheel diameter: 125 mm

CHP250
On the CHP250, two CNC axes control the bevel grinding and the infeed of the grinding wheel. This is a prerequisite for grinding any tooth geometry on the front (face) or back (flank) of the tooth in a single pass.

Central lubrication and exhaust system are included.
Bdodpjykmxtefx Agnsa
For effective coolant (oil or emulsion) cleaning, a Seitz-brand band filter system from 2010 is included. Up to 3 machines can be connected to the unit. The base is made of stainless steel. The condition is very good.
