Kositës i shpejtë

350 High speed

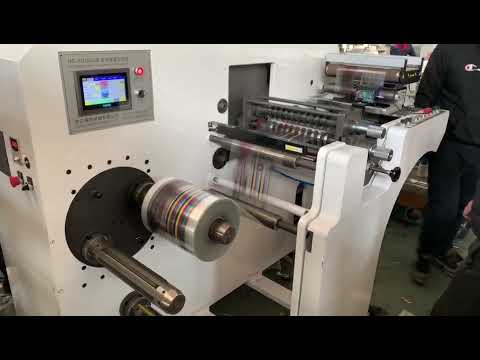

350 is a high speed slitting machine with excellent design structure. The max. slitting speed can reach to 300m/min with stable running. It adopts full servo motor system and PLC to control the machine tension, which guarantee machine run stable when high speed slitting.

This automatic slitting machine is mainly suitable for slitting label rolls and adhesive labels, and it also could slit general paper and film rolls.

Features:
1. full servo motor driving system for tension control.
2. Italy ST web guide system guarantees the high precision of web when high speed running.
3. Moveable eccentric knife roller design makes operator adjust knife conveniently.
4. Special rewinding structure, upper shaft adopts turret rewinder structure.
5. PLC and touch screen control.
6. Unwinding shaft could lift up and down, which can load heavy web roll.

Specifications:
Fpodpfx Aeg I H Nasd Djp
Max. web width - 350 mm
Max. unwinding diameter - 800 mm
Min. slitting width - 20 mm
Slitting speed - ≤300 m/min
Precision of slitting - ±0.10 mm
Max. rewinding diameter - 500 mm
Power supply - 380V/3ph
Main motor power - 1,8 kw
Weight - 1780 kg
Overall dimension - 1200 x 2400 x 1650 mm
