Autobetoniere

Mercedes-Benz Actros 2641 - Concrete sprayer - AMV

The authorized SUBARU dealer in Łaziska Górne is presenting a special-purpose machine built on a 2012 Mercedes-Benz Actros 6x4 2641 chassis. This machine is designed for applying shotcrete to rocks, tunnels, and quarries; it is a so-called "Shotcrete Robot," a concrete sprayer for sprayable concrete, and a tunnel spraying machine.
It is ideally suited for securing rocks against atmospheric conditions, preventing crumbling, and similar tasks.
These vehicles are most commonly used in the construction of tunnels and viaducts, as well as for securing slopes and rock faces.
They are also used for the maintenance of certain mountainous areas.
The Mercedes has 6,100 operating hours.

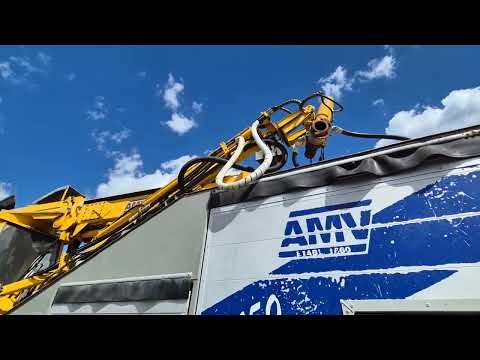

This is a specialized, mobile concrete spraying machine, the AMV 7450D, mounted on a Mercedes-Benz Actros chassis. It is a professional piece of equipment designed for use in tunnels, mines, for securing rocks, slopes, and excavations, and for concrete structures using the shotcrete method.
The machine was manufactured by the renowned Norwegian manufacturer AMV Andersen Mek. Verksted AS, which specializes in tunnel and mining machinery, as well as shotcrete equipment.
The vehicle is ideally suited for companies involved in tunnel construction, mining, rock face stabilization, geotechnical work, and specialized infrastructure projects.

Mass and dimensions:
GVWR: 27,500 kg
Payload: 4,125 kg
Unladen weight: 23,375 kg
External dimensions:
Length: 1095 cm
Width: 255 cm
Height: 390 cm
Wheelbase: 4500mm/1350mm
Emission standard: EURO 5

Basic data:
Chassis brand: Mercedes-Benz
Model: Actros
Vehicle production year: 2012
Superstructure: AMV 7450D Shotcrete Robot
Superstructure manufacturer: AMV Andersen Mek. Verksted AS, Norway
Superstructure production year: 2012
Superstructure serial number: 12-0070
Permissible/technical mass according to AMV plate: 44,500 kg
Operating voltage: 400 V AC
Operation: 1 operator
Application: shotcrete / tunnel construction / mining

Key operating parameters of AMV 7450D
Concrete pump capacity: up to 25 m³/h
Vertical reach of the arm: approximately 13.7 m
Horizontal reach of the arm: approximately 13.7 m
Type of work: wet shotcrete application
Type of machine: mobile shotcrete robot
Working system: AMV tunnel superstructure with spraying boom
Superstructure power supply: 400 V AC
Water tank: to be confirmed
Working pressure: to be confirmed according to technical documentation
Nodpfx Aey U Ih Sehqowg

Application:
The machine is designed for, among other things:
shotcreting in tunnels,
mining and underground work,
securing rock faces,
reinforcing excavations,
stabilizing slopes and embankments,
geotechnical work,
infrastructure projects,
construction of road and railway tunnels,
strengthening concrete structures,
protection against fragmentation and landslides.
This equipment is particularly useful for companies carrying out specialized construction, tunnel, mining, and hydraulic engineering contracts.

Inspection report:
The truck arrived from Norway from the first owner to our location in Poland, having been driven here.
There were no problems encountered on the road. It has been regularly serviced and is ready for further operation.
It is currently fitted with 385/65R22.5 tires on the front axle and 315/80R22.5 tires on the rear axles, with a tread depth of approximately 70%.
The entire machine and vehicle have been inspected and refurbished by us.
