Raft për dru zjarri, raft me rafte

Dexion HI280 / Gitterrostboden / Regallänge: 1,38 lfm.

Note:
The rack is offered without firewood.
The firewood shown is for decorative purposes only.

Technical Data for the Firewood Rack:
Racking System: Dexion
Type: HI280

Technical Data for Setup:
Number of rack rows: 1 unit
Ledpoxlzlcofx Ahzjru
Rack length: 1,380 mm
Number of bays per rack row: 1 unit
Number of shelves incl. base level: 5 units

Scope of Delivery Includes:
02x Upright frames, used
Finish: Sendzimir galvanized
Frame profile dimensions: 50 x 55 mm
Adjustment pitch: 25 mm

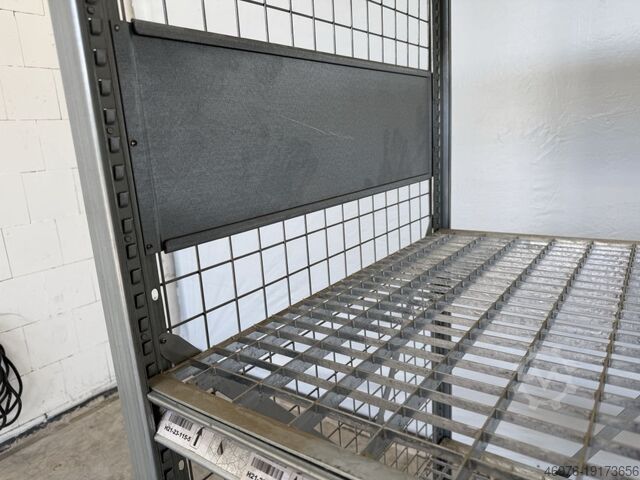

Including mesh side panels
Mesh size: 50 x 50 mm
The frames are pre-assembled
Height: 2,400 mm
Depth: 800 mm

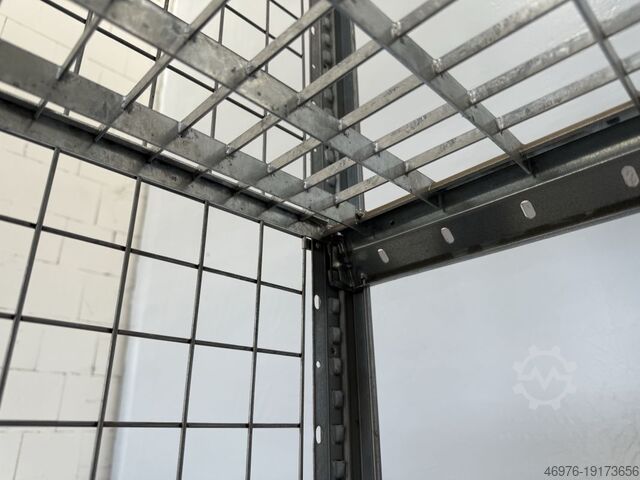

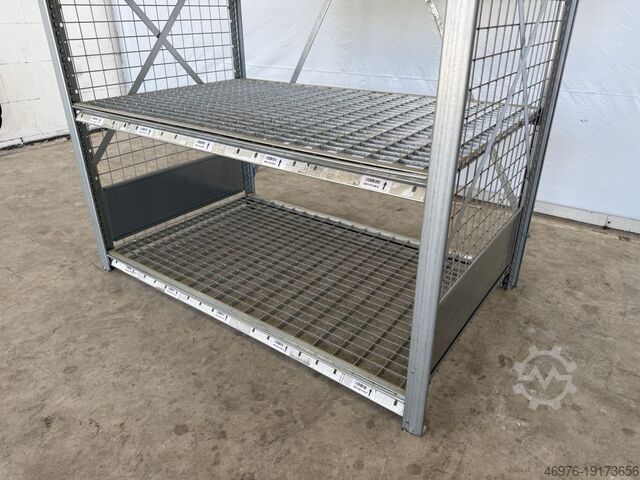

05x Mesh decking panels, used
Finish: hot-dip galvanized
Overall depth: approx. 782 mm (bearing bar direction)
Overall width: approx. 1,270 mm (cross-bar direction)
Bearing bar dimensions: 20|1.80 mm
Support height: approx. 20 mm
Frame height: approx. 20 mm
Mesh size: 68 x 35 mm
Weight per panel: approx. 10.91 kg

04x Shims, new
Type: HI280 U-PL. STD 42X50X1.2 VZ
Finish: Sendzimir galvanized

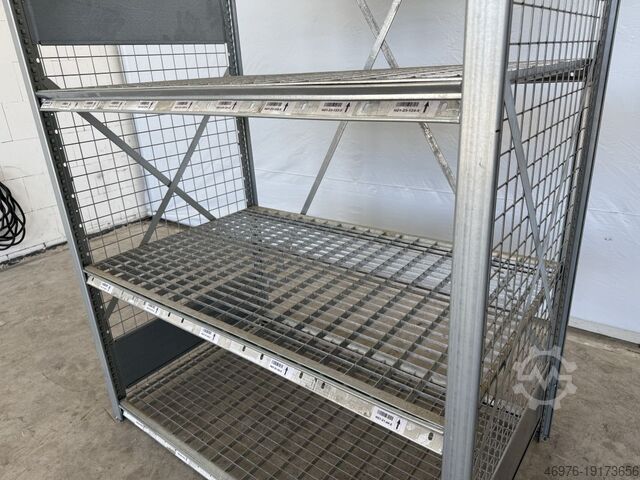

10x Shelf beams, used
Total length: 1,280 mm
Z-profile: 50 x 25 mm
Number of hooks: 2 units
Weight per beam: approx. 0.84 kg
Finish: Sendzimir galvanized

01x Diagonal brace, used
Finish: Sendzimir galvanized

01x Load capacity sign
With information on bay and shelf loads, manufacturer, and commission number
Dimensions: 297 x 210 x 2 mm

Your contacts at our company:

Mr: Andre Evering
Mr: Mario Klöver
Mr: Falk Deutsch

General Information about the Item:
This item is available for collection only. If transport or shipping is required beyond collection, this will incur additional costs, which can be requested separately depending on the delivery location and scope from us.
