Makinë për futjen e zarfeve

Buhrs BB300

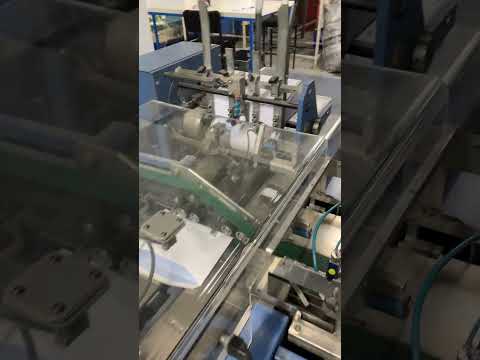

2004 Buhrs BB300 Envelope Insertion Machine (with Intelmail VAF front end)
Sr Nr: 200145

8 Station model currently running 6 AT25 rotary feeders with an MTS Sure-feed SE1200 PS/PC in the position of the last 2 hoppers.
Spare AT25 rotary feeder & AS25 Shuttle feeder.
Intelmail VAF front end fully integrated by Intelmail at supply in 2004.

Buhrs specification:
Envelope format: Standard envelopes with window min. C6 - 114 x 162 mm / 4 1/8 x 9 1/2 inch
(No.10) DL-110x220mm
max.B4 - 250 x 353 mm / 9 ¾ x 13 ½ inch
flap length: max.: 55mm / 2 ¼ inch, min.: 20 mm / ¾ inch
Paper quality (envelope): min. 75 gsm, max. 110 gsm
Thickness of supplement material: max. 9 mm, / 3/8 inch
Supply conveyor: min. 150mm / 6 inch, max. 330 mm / 13 ½ inch
Paper quality (supplement material): min. 70 gsm

VAF specification:
Power requirements
Voltage 110 - 240 volts A.C.
Frequency 50 - 60 Hz
Phase Single
Power 200 Watts
Thermal 170 Joules/s
Physical Dimensions (Approx)
- Length 1650 mm
- Width 530 mm
- Height 1200 mm
- Weight 140 kg (308 lbs)
General
Sound Level 72 dBA
Fold Unit - Letter fold sets: Up to 8 pages 85 gsm, [22lb]; Half fold sets: Up to 12 pages 85 gsm, [22lb]
Paper Size range 145 x 180 mm to 296 x 420 mm
Feed and Read Rate 50,000 + sheets per hour. [A4 sheets]
Form sizes / A4 up to A4 [and A3 half folded]
Paper Weights 60 - 200 gsm
